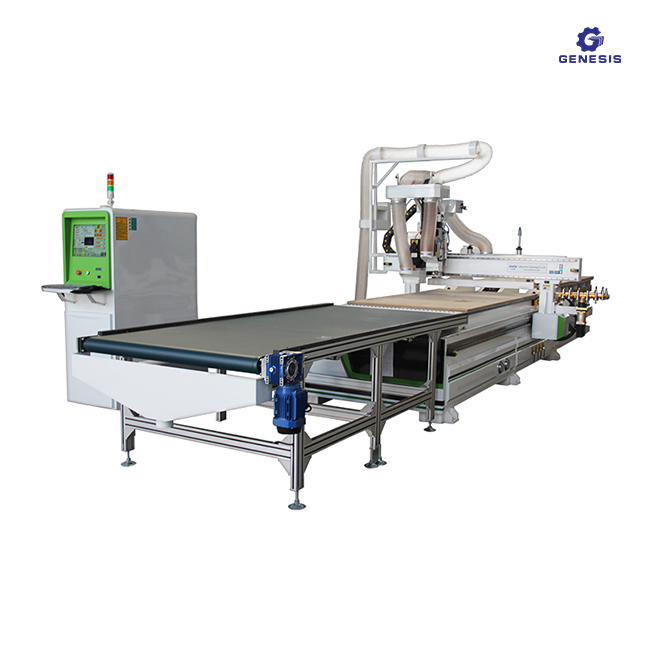

Auto Loading And Unloading GN-1325 Nesting Wood Engraving Machine


Product Description


1). Adopt linear-square orbit, whole machine is welded with seamless steel structure, can heavy loading.
2). Taiwan HIWIN square guide rail, ball screw for z axis and gear-wheel for x and y axis
3). Taiwan Syntec control system. Bus control, namely a line control all drives, convenient maintenance.
4). air cooling spindle( 0-24000rpm )

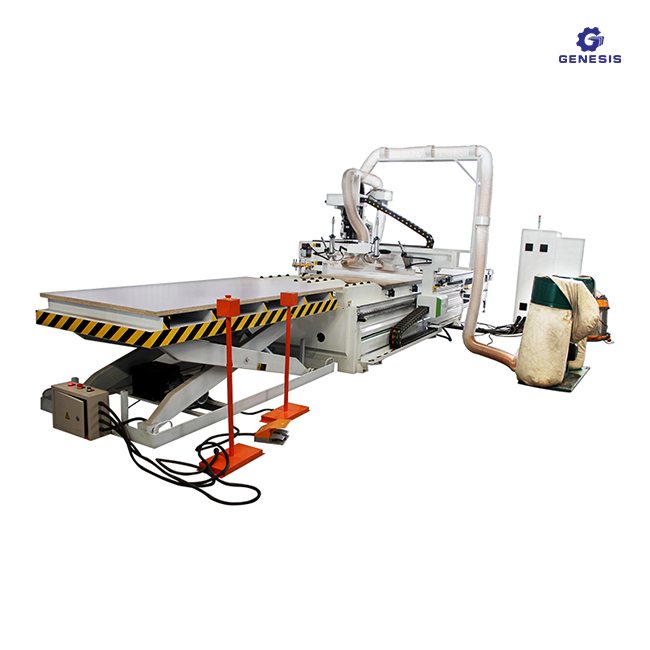

5). Highly automated nesting solution with automatic loading and unloading system. The complete work cycle of loading, nest cutting, and unloading is carried out automatically, which results in maximum productivity and zero down time.

6). With better compatibility, can math with many programs such as Type3, artcam, castmate, CAM, etc.

Applicable industries:

It is used in nested based production of cabinets, closets, wardrobe and custom furniture.

* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.

* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.

* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.

*Nesting, routing, vertical drilling and engraving all in one.It is well-suited for panel furniture, office furniture, cabinets production.


Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

Mainly specification:

Working area


X,Y,Z Traveling Positioning Accuracy


X,Y,Z Repositioning Accuracy


Loading and unloading size

Same as working area

Table Surface

vacuum table with vacuum pump


Big Steel tube structure

X, Y Structure

Hiwin Rail Linear Bearings

Z Structure

Hiwin Linear Bearings and Ball Screw

Max. Rapid Travel Rate


Max. Working Speed


Spindle Power

9KW HQD air cooling spindle

Spindle Speed


Drive Motors

Yaskawa servo motor

Working Voltage

AC220V/50/60Hz,3PH (Option: 380V)

Command Language

G code

Operating System

Syntec /NK280B control system

Computer Interface
