GN1390 Laser Engraving And Cutting Machine

Product Specifications

Model	GN1390.
Working area	1300*900mm
Whole machine size	1850*1250*1070mm
Laser-type	Sealed CO2 laser tube, water cooling
Laser power	80W/100W/130W/150W .etc option
Engraving speed	0-60000mm/min
Cutting speed	0-10000mm/mi
Minimum shaping character	letter 1 mm, Chinese 2mm
Graphic format supported	PLT, BMP, DXF, AI, CDR,PCX,DST,GIF DWG
Laser output control	1-100% software setting
Highest Scanning Precision	2500DPI
Resolution ratio	<0.01mm
Location precision	<0.01mm
Working temperature	5℃－40℃
Operating humidity	5%-95%(without condensed water)
Software compatibility	CorelDraw, PhotoShop, AutoCAD
Option part	Up-down worktable, Red light pointer, Auto focus, Rotary device
Working voltage	AC220V 50HZ 3A  /  AC110V 60HZ 3A

Features

1. DW series high speed laser engraving & cutting machine adopts the new high-efficiency laser tube, the laser beam is more stable than the traditional type, and the life of the laser tube is more than 8000hours.

2. Compared with the ordinary laser machine, DW series adopts more scientific design and high-strength steel-frame structure, which increase the fuselage strength more than 40% to prevent the machine from distortion during long term work.

3. The humanized and modern appearance shows Dwin's consistent humanity idea, and it also makes the operation and maintenance quite easy.

4. Advanced Ruida control system, with professional motion control chip in it, has the function of consecutively high-speed curve cutting and the shortest path selection, which largely improves your working efficiency.

5. All the machines are equipped with USD offline control system, which makes the operation more convenient and faster.

Applicable Industries

Model industry (construction models, aviation and navigation models and wooden toys), advertising, decoration, arts and crafts, electronics, and electric appliances, etc.

Applicable Materials

Non-metal material such as acrylic ,wood planks (light planks ,paulownia wood ), bamboo ware, double-color sheets, paper, leather, shells, coconut sheels, ox horns, resin animal grease, ABS boards, lamo shade, etc.

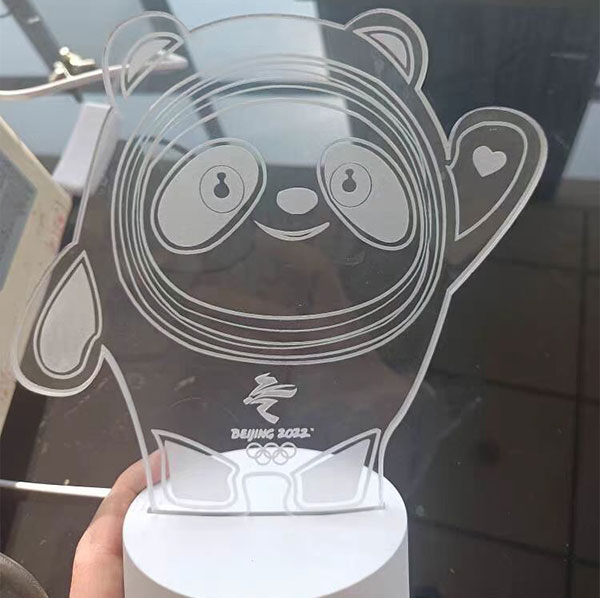

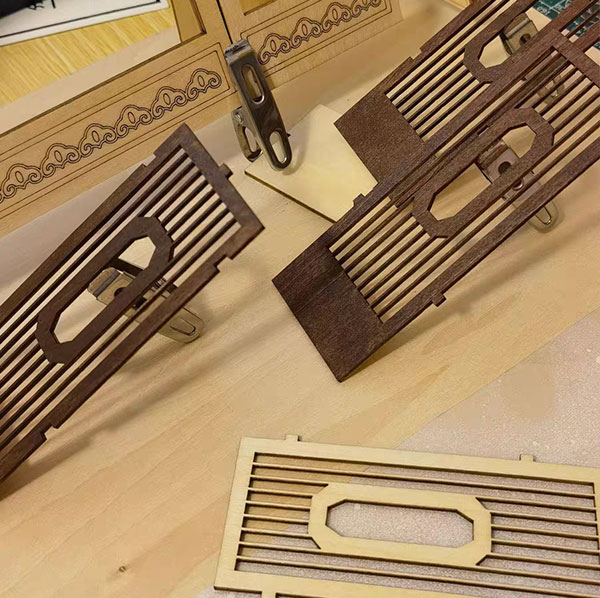

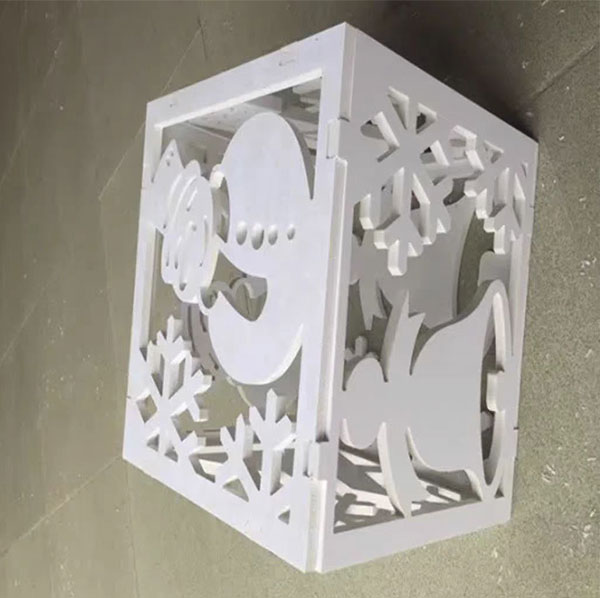

Sample
