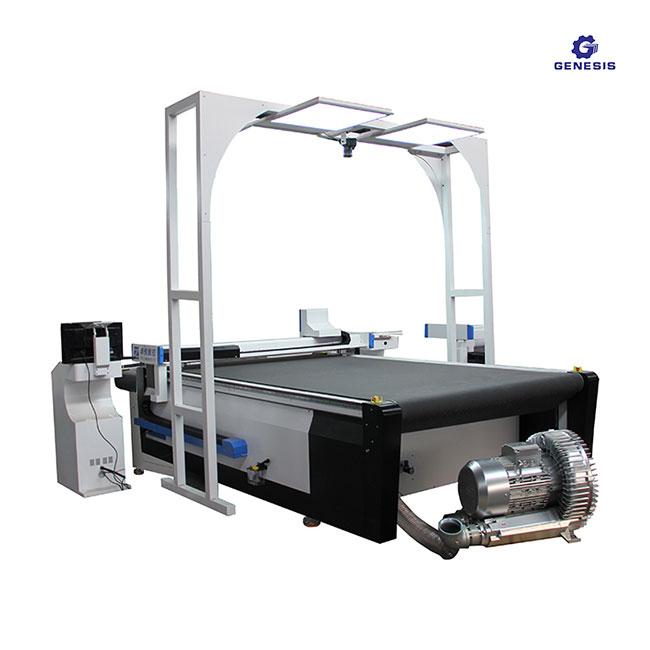

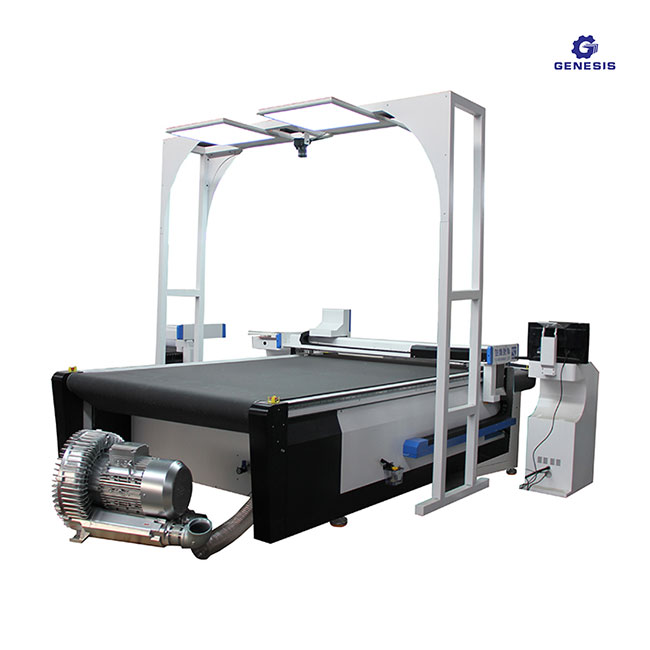

GN1625 CNC Oscillating Cutting Machine with CCD Camera

Availability:
Quantity:

Product Description

Fixed mode

flat plate table (Optional: auto feeding system )

Head

1. exchangeable oscillating head

Optional(1.Pneumatic cutting head 2.Round knife  3.Inkjet pen 4.Punching head)

Safety device

Using infrared sensors,  responsive, safe and reliable

CCD camera

Canon

Computer

Lenovo brand (optional)

translational velocity

800-1200mm/s

Cutting speed

200-800mm/s(according to different cutting materials)

Cutting thickness

according to different cutting materials

Cutting materials

Sponge composite leather,

PVC, soft glass, Silicon, rubber,Leather, all kinds of fabric,clothing flexible material,seat

cushion,hard polyurethane block, etc

Repeated accuracy

≤0.1mm

Capacity

2GB

Transmission system

imported(Digital servo motor, linear guide, synchronous belt, ball screw)

Instruction system

HP-GL compatible format

Voltage

380V±10%

Other configuration

Japan Yaskawa servo motors (Optional :Delta servo motors) Germany imported conveyor belt, vacuum table, 9kw vacuum pump

1. The platform detection device regulates the knife pressure automatically, enabling a level platform and perfect cutting.

2. The high precision GN  CNC oscillating knife leather cutting machine can induce draft separately and easily cuts small pieces.

3. The anti-collision and the built-in auto  sensing devices ensure the security of cnc oscillating knife

leather cutting machine.

4. High efficiency can be realized without making a high-cost knife model.

5. The high precision GN CNC oscillating knife leather cutting machine is designed for production with small

quantities and can save on costs while maintaining speed and accuracy.



Sample

CNC Oscillating cutting machine
CNC Oscillating cutting machine
CNC Oscillating cutting machine
CNC Oscillating cutting machine
CNC Oscillating cutting machine
CNC Oscillating cutting machine
CNC Oscillating cutting machine
CNC Oscillating cutting machine


Remark:

1. Installation guide and manual and tool kit will be sent to Buyer with machine.

2. All spare parts on machine we take use high quality and professional installation.

3. Machine has been tested for 72 hours without stop before delivery.

4. CE authorized , ISO9001, FDA, strictly carried out.


Guarantee & After Sales Service:

1. 24 months quality guaranty, the machine with main parts (excluding the consumables) shall be changed free of charge when problems happened during the warranty period.

2. Lifetime maintenance free of charge.

3. Free training course at our plant.

4. We will provide the consumable parts at an agency price when you need replacement.

5. 12 hours on line service each day, free technical support.
