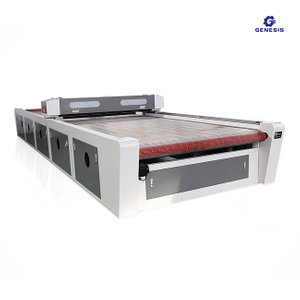

GN 1325 CO2 Metal And Nonmetal Laser Cutting Machine

Product Specifications

Model	DW1325
Working area	1300*2500mm
Laser-type	Sealed CO2 laser tube
Laser power	130W /150W/180W/260W or GSI ,Reci for choose
cutting speed	0-10000mm/min
Minimum shaping character	letter 2mm, Chinese 3mm
Reposition accuracy	±0.05mm
Laser head	Professional laser head with the auto height control
Y axis transmission	Ball screw with the square linear guide rail
Graphic format supported	BMP, PLT, DST, DXF, AI,CDR,DST,GIF DWG
Laser output control	1-100% software setting
Laser tube cooling type	Water chiller LW16 or cooling machine
Highest Scanning Precision	2000DPI
Other auxiliary equipment	Exhaust fans and air exhaust pipe
Working temperature	5℃－40℃
Operating humidity	5%-95%(without condensed water)
Software compatibility	CorelDraw, PhotoShop, AutoCAD
Working voltage	AC220V 50HZ 3A  /  AC110V 60HZ 3A

Features

# To cater to larger material cutting in co2 metal and nonmetal cutting industry ,this machine adopts large and solid cast steel machine lather , to make it more capable in material load bearing ,at the same time ,let the machine operating stable during work .

# With ball screw transmission on two side of the it , this machine acquires high precision in metal cutting . Special up and down adjusting laser head ,enables it processiong well on uneven metal materials .

#imported Japanese servo motor ,more powerful and stable compares with traditional china made servo motor cooperation with the imported ball screw ,this machine get additional more precision and flexibility in cutting result than the ordinary model

# this machine can also be customized .

Applicable Industries

Mainly used in advertising ,decoration industry (stainless metal and carbon steel related products),sheet metal industry (carbon steel ) ,packing industry (die board )and other related industry.

Applicable Materials

Nonmetal materials ,like acrylic ,wood ,MDF,die board ,and so on . metal  materials ,such as stainless steel , carbon steel ,etc.

Sample
