Product Description
Product Specifications
Model | GN1325 |
Working area | 1300*2500mm |
Whole machine size | 2950*1800*1100mm |
Laser-type | Sealed CO2 laser tube, water cooling |
Laser power | 80W/100W/130W/150W.etc option |
Engraving speed | 0-60000mm/min |
Cutting speed | 0-10000mm/mi |
Minimum shaping character | letter 1 mm, Chinese 2mm |
Graphic format supported | PLT, BMP, DXF, AI, CDR,PCX,DST,GIF DWG |
Laser output control | 1-100% software setting |
Highest Scanning Precision | 2500DPI |
Resolution ratio | <0.01mm |
Location precision | <0.01mm |
Working temperature | 5℃-40℃ |
Operating humidity | 5%-95%(without condensed water) |
Software compatibility | CorelDraw, PhotoShop, AutoCAD |
Option part | Up-down worktable, Red light pointer, Auto focus, Rotary device |
Working voltage | AC220V 50HZ 3A / AC110V 60HZ 3A |
Features
# To meet the demand of cutting in large width, Dwin laser cutting bed adopts the machine tool-level chasis to ensure the stability and accuracy in high speed working.
# The moving system adopts Taiwan Hiwin linear guide and precision gear , matched with the advanced stepper motor to ensure the working accuracy.
#The new style laser tube which is stable and extra durable can make nice smooth cutting work at one time, never need the secondary processing.
#The automatic feeding system can be added to save time and cost, and to improve work efficiency .
Applicable Industries
Garments sampling, large format tailoring, leather industry, shoes making, decoration, furniture, advertisement, packing and printing, molding, craft gifts industries etc.
Applicable Materials
Fabrics, leather, paper, bamboo ware, organic glass, glass, thin film, canvas, etc.

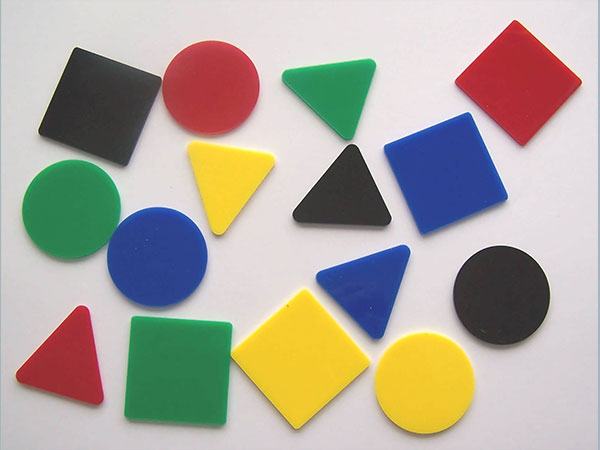

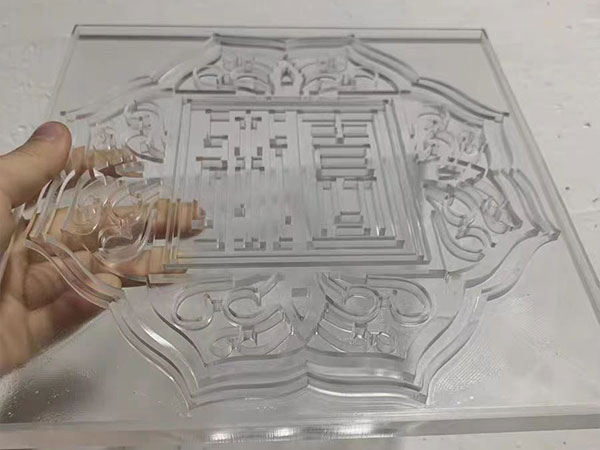

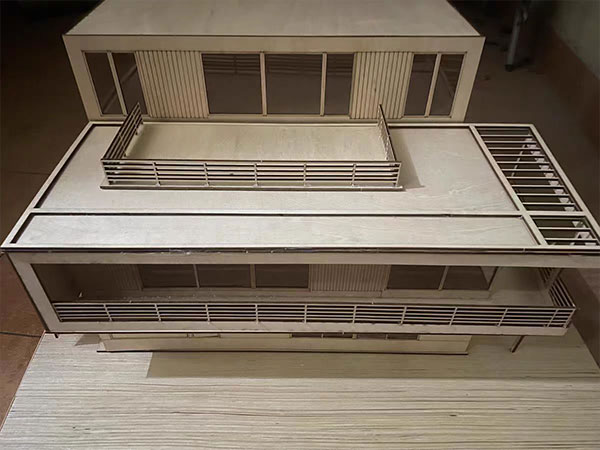

Sample
