Product Description

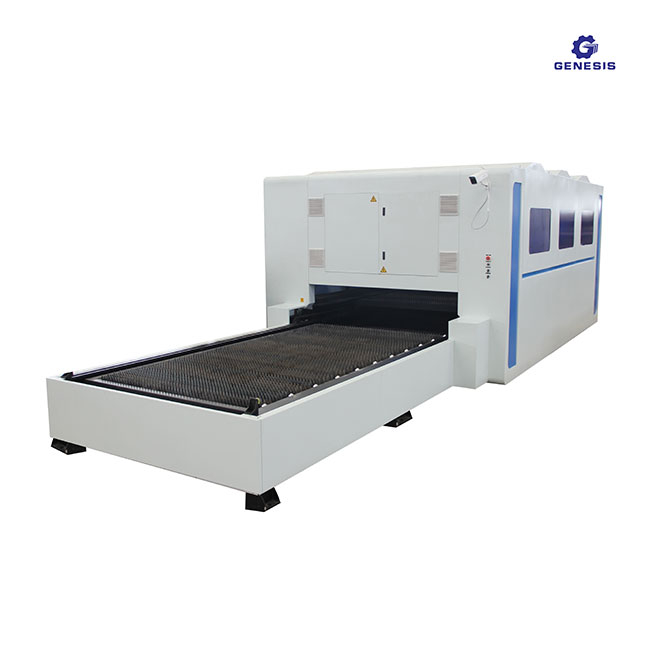

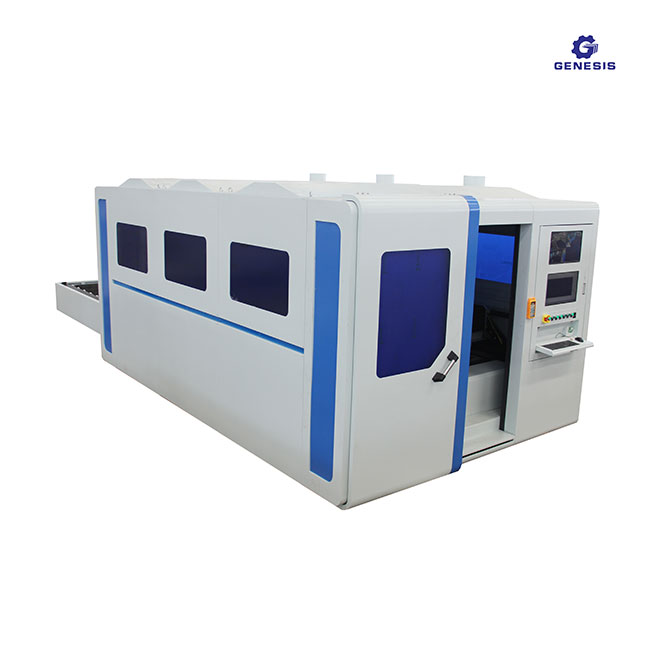

Fiber laser cutting machine GN1530(3000W)
It is good at processing on Mechanical and Electrical Equipment ,Stainless steel products, Construction and decoration industries ,Environmental protection equipment.Kitchenware,Car accessories .Precision metal parts ,etc.
This machine is Double working table , so when machine cuts materials , the second table will come out , then customer can load materials on second table . After cutting in first table , then first table come out , second table into , then continue to cut . So that can save time .
Product parameter :
Name | Fiber laser cutting machine |
Laser power | 3000W |
Laser generator | Raycus |
Exchange table | 1300x2500mm / 1500x3000mm |
Fully enclosed protective shell | Included |
Maximum cutting speed | 0-50m/min (depend on material and thickness) |
Working area | 1500x3000mm |
Reposition accuracy | ±0.02mm |
Maximum travel speed | 180m/min |
Motor and Driver | Japan Yaskawa servo motor |
Control system | Cypcut control system |
Rails | Taiwan HIWIN /PMI 30mm rails |
Rack | Taiwan YYC rack transmission |
Working table | Exchange table |
Reducer | German Neugart |
Structure | 10mm machine structure |
Graphic format support | CAD,DXF(etc) |
Power supply | 380V/50HZ/60HZ/3Phase |
Weight | 5000KG |
Warranty | 2 years |

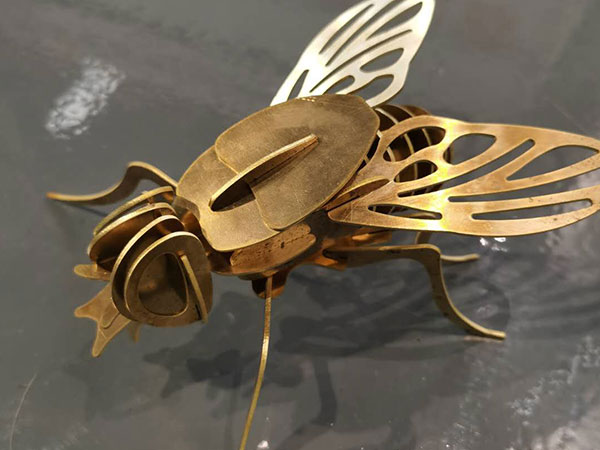

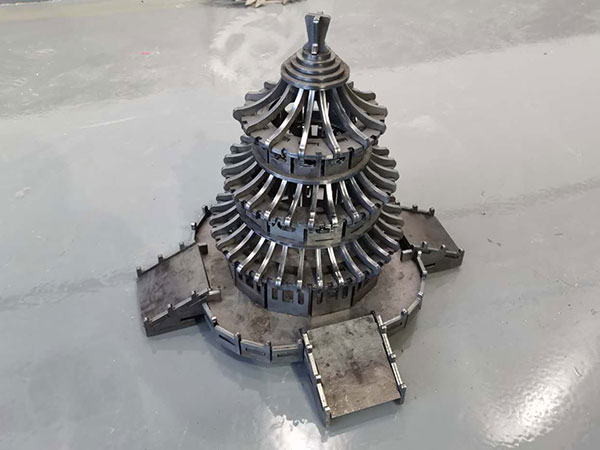

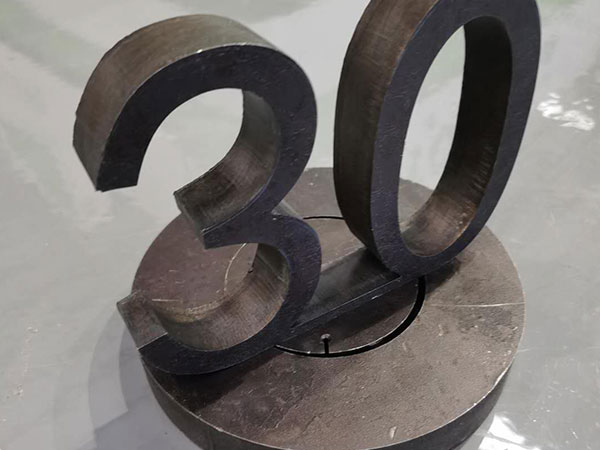

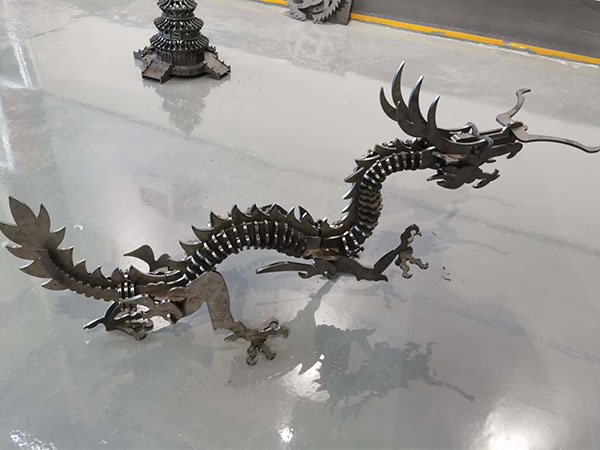

Samples
