Product Description
Machine description：

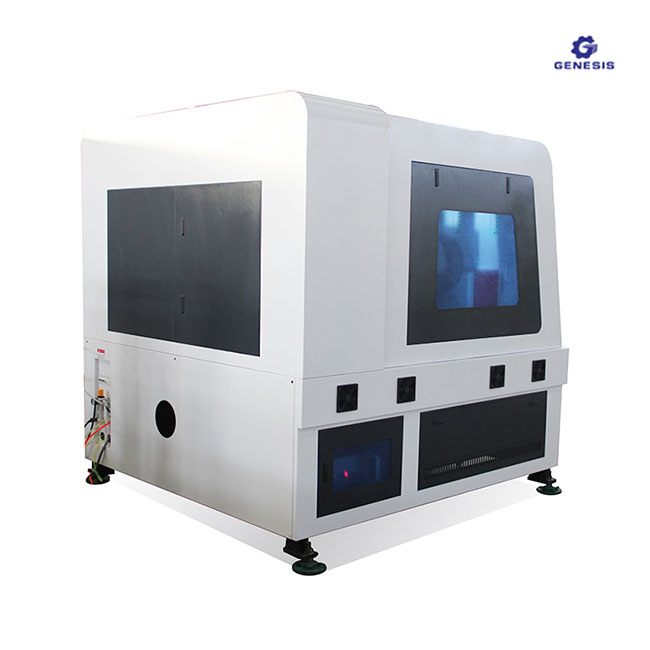

The GN1390 fiber laser cutting machine with 1000W/1500W laser source ,widely used in kitchen appliance, electric control box, high-resolute device, mechanical equipment, electrical equipment, lighting, posters, auto parts, display equipment, hardware and metal processing, etc.

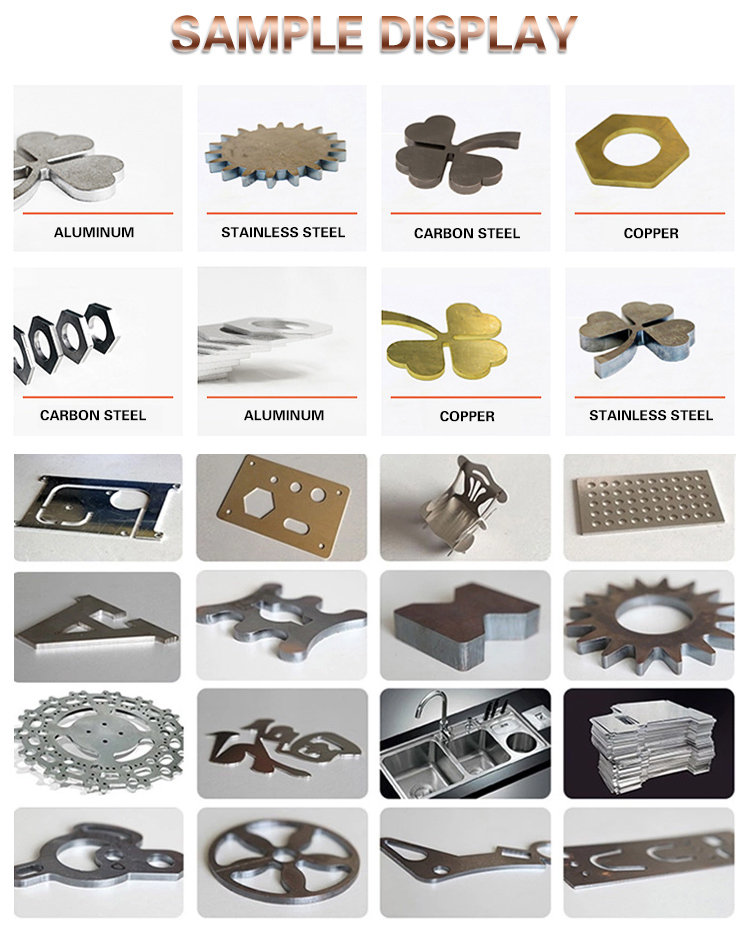

Applicable for high-speed cutting on various metal plates or tubes (optional rotary device) such as S/S, carbon steel, galvanized sheet, electrolytic plate, aluminum plate, steel, brass, alloy plate, rare metals etc.
Technical parameter:
Name | Fiber laser cutting machine |
Model | GN1390 |
Working area（customizable） | 1300*900mm |
Laser Type | Fiber laser |
Laser power | 1000W/1500W Raycus/MAX/IPG/RECI |
Maximum cutting speed | 0-30m/min ( Depending on the material and thickness) |
Maximum travel speed | 100m/min |
Repeatability position | ±0.03mm |
Driver motor | Japan Yaskawa /Panasonic servo motor and drivers |
Working Table | Serrate working platform |
XY Axis Transmission system | Taiwan YYC helical rack and pinion |
Guide rail | Taiwan HIWIN/PMI guide rail |
Cooling system | dual-temperature industry chiller |
Equipment power consumption | <18KW |
Power supply | AC 380V 3Phase |
