GN1530 Sheet & Tube Laser Cutting Machines

Availability:
Quantity:

Product Description

Machine Introduction

Fiber laser cutting machine as one classic model, widely used in many common areas of our life, such as processing of stainless steel kitchenware, storage cabinet and other cabinets, is closely related to people's daily life.

Used for cutting a variety of metal plates, pipes (add pipe cutting device), mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, various alloy plate, rare metal and other metal materials.

1) Low cost and the power consumption is 0.5-1.5kw/h; Customer can cut all kinds of metal sheets by blowing air;

2) High-performance. Imported the original packaged fiber laser, with stable performance and the lifespan is over 100,000 hours;

3) High speed and efficiency, the speed of cutting metal sheets close to tens of meters;

4) The laser maintenance free;

5) The cutting edge looks perfect and the appearance is smooth and beautiful;

6) Imported the transmission mechanism and servo motor, and high cutting accuracy;

7) Dedicated software enables graphic or text to be instantly designed or processed. Flexible and easy operation.


Machine Parameter :

Model

Fiber-1530

Working Area

1500X3000mm

Laser Type

Raycus / Max

Laser Power

1000w / 1500w /2000w /3000w

Laser Wavelength

1060 nm

Beam Quality

<0.373mrad

Positioning Accuracy

≤ &plusmn;0.05mm/m

Re-positioning Accuracy

≤&plusmn;0.02mm/m

Max Cutting Speed

0-40m/min(depending on material and thickness)

Power Supply Rated Voltage

3-phase 380V/50Hz

X-axis Stroke

1500mm

Y-axis Stroke

3000mm

Z-axis Stroke

120mm

Working Table

Rack working platform

Control System

Cypcut CNC control system

Location System

Red dot indicator

Water Cooling System

Constant temperature water chiller(CWFL-1000 /1500 /2000 /3000)

Machine Weight

3500KG

Rotary Diameter

220mm

Rotary length

3000mm /6000mm

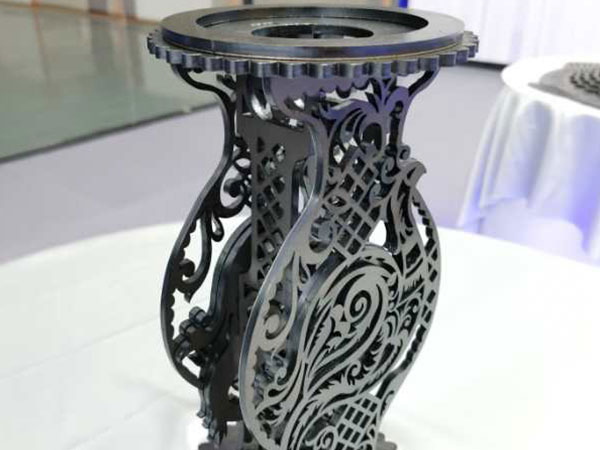

Samples

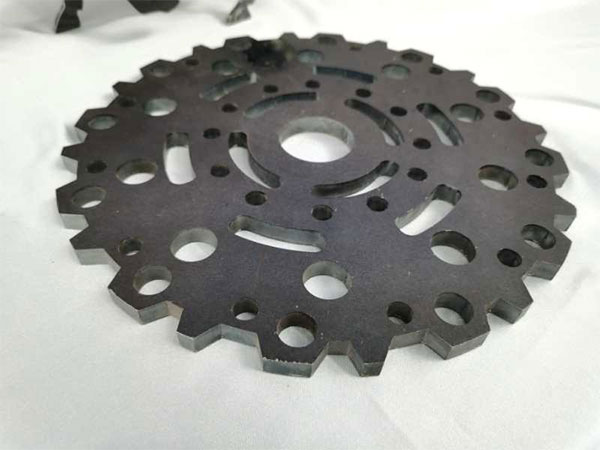

Samples

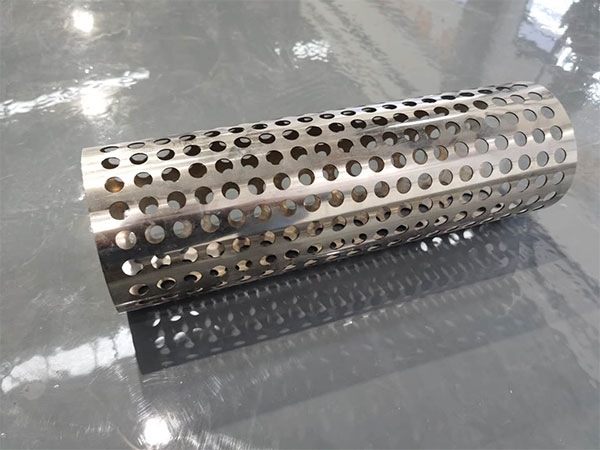

Samples
Samples
Samples
Samples
Samples
